消色差膠合透鏡，工作波段：400-700 nm

  • 工作波段：400-700 nm
  • 光學性能優于單透鏡
  • 工作波段具有近衍射極限性能
  • 產品介紹
  • 曲線

產品說明

消色差透鏡通常由多個光學元件膠合而成，交替使用低折射率材料的正透鏡（例如冕玻璃）和高折射率材料的負透鏡（例如燧石玻璃）。選擇并優化這些元素，以便通過負透鏡校正正透鏡的色散，從而最小化色差。消色差透鏡能夠在工作波段內提供近乎恒定的焦距，從而具有出色的離軸性能。與單透鏡相比，消色差膠合透鏡為用戶提供了更多的設計選擇，從而在視覺成像和激光束操縱應用中性能卓越。我們的透鏡是經過計算機設計優化的，可最大程度地減少像差并提供較小的聚焦光斑。

晶萃光學JCOPTIX的可見光消色差透鏡是針對可見光波長氫"F"線(486.1 nm，藍光/綠光)、氦"d"線(587.6 nm，黃光) 和 氫"C"線(656.3 nm，紅光)而設計的。對于任何可見光波段的單色應用，消色差透鏡都優于單透鏡。當使用諸如激光等單色光源時,可以形成衍射極限光斑。

晶萃光學JCOPTIX提供的可見光消色差透鏡直徑為12.7 mm、25.4 mm和50.8 mm，可根據實際應用場景選擇不同的工作波長版本，分別為400-700 nm、650-1050 nm、1050-1700 nm和400-1100 nm。針對工作波段優化的增透膜能有效減少表面反射（單面平均反射率小于1%），提高透鏡的透過率。如有其他特殊定制需求，請聯系技術支持。

通用參數

通光孔徑
>90% of Diameter
工作波長
400-700 nm
設計波長
486.1 nm、587.6 nm、656.3 nm
鍍膜
增透膜
增透膜
Ravg< 0.5%
直徑公差
+0.00/-0.10 mm
焦距公差
± 1%
偏心度
< 3 arcmin
面型PV值
λ/4
球面光圈數
3
表面光潔度（劃痕/麻點）
40/20
工作溫度
-40 - +85 °C
  • OLD1418-T2 Focal Length Shift

    OLD1418-T2 Focal Length Shift

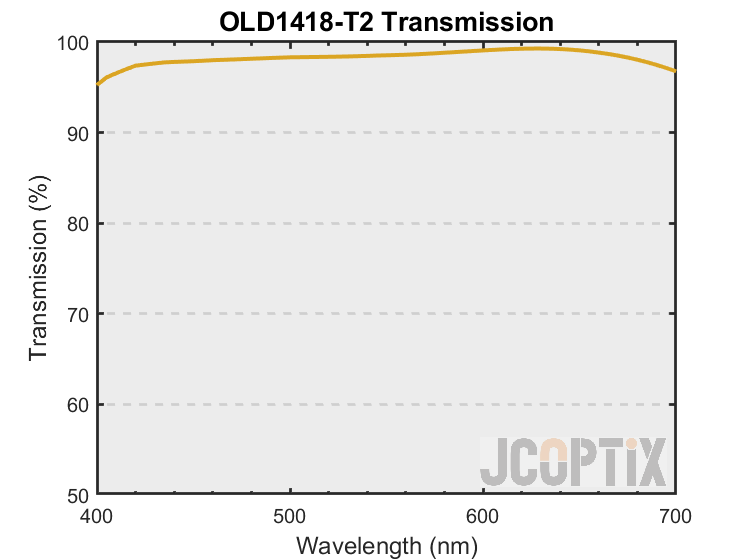

  • OLD1418-T2 Theoretical Transmission

    OLD1418-T2 Theoretical Transmission

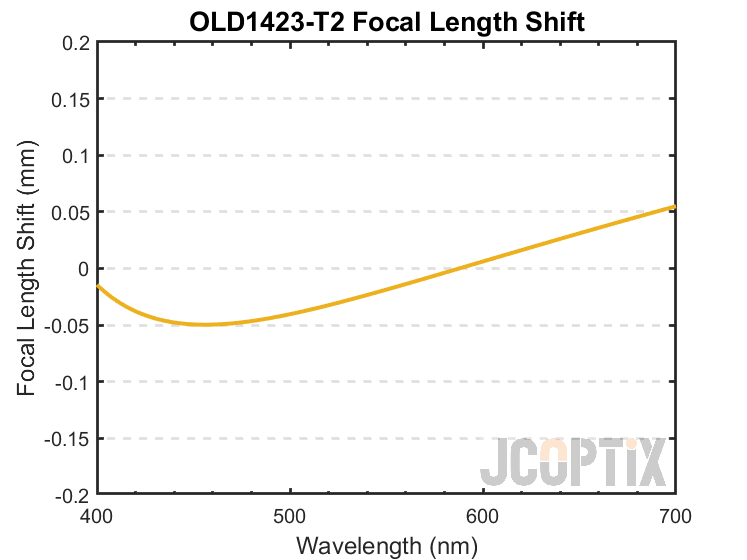

  • OLD1423-T2 Focal Length Shift

    OLD1423-T2 Focal Length Shift

  • OLD1423-T2 Theoretical Transmission

    OLD1423-T2 Theoretical Transmission

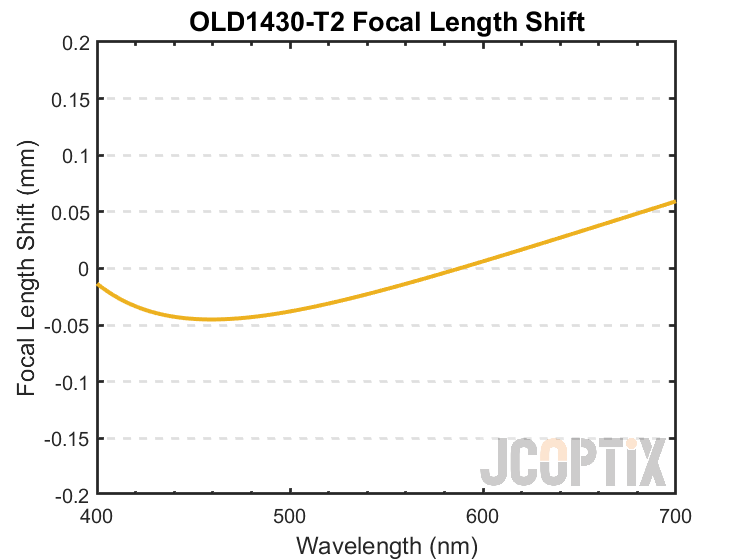

  • OLD1430-T2 Focal Length Shift

    OLD1430-T2 Focal Length Shift

  • OLD1430-T2 Theoretical Transmission

    OLD1430-T2 Theoretical Transmission

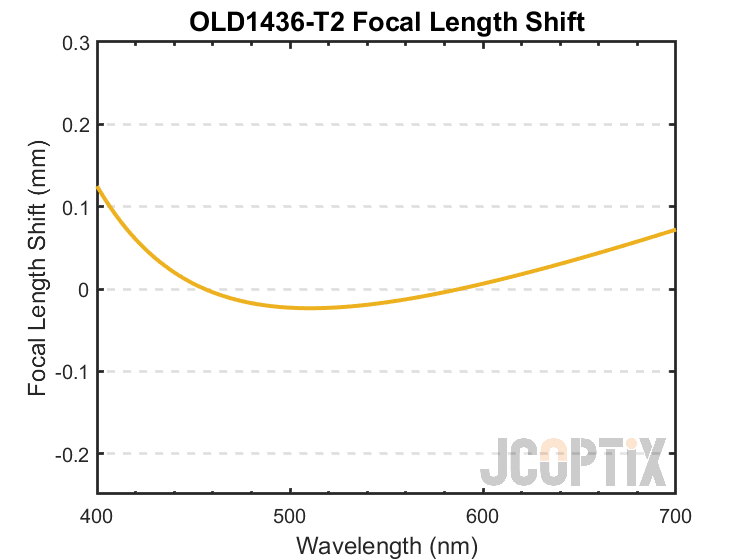

  • OLD1436-T2 Focal Length Shift

    OLD1436-T2 Focal Length Shift

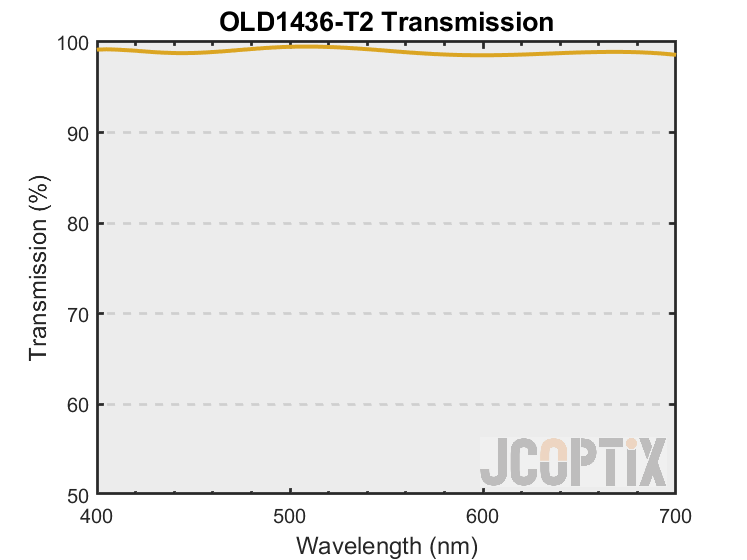

  • OLD1436-T2 Theoretical Transmission

    OLD1436-T2 Theoretical Transmission

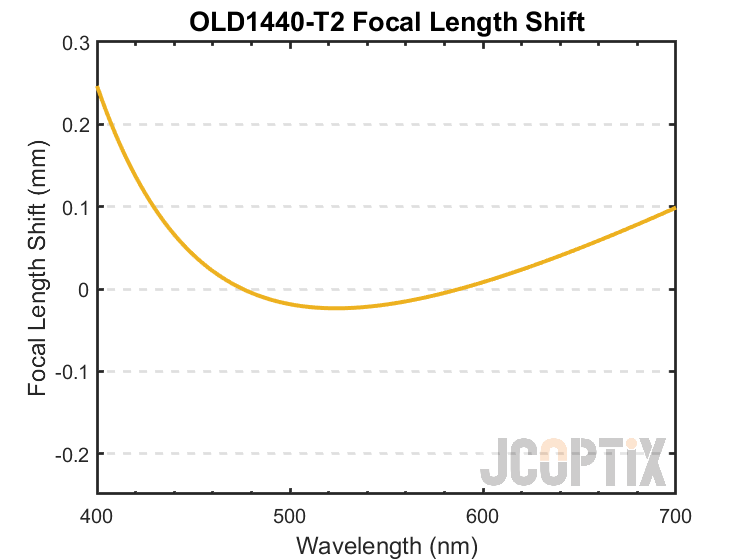

  • OLD1440-T2 Focal Length Shift

    OLD1440-T2 Focal Length Shift

  • OLD1440-T2 Theoretical Transmission

    OLD1440-T2 Theoretical Transmission

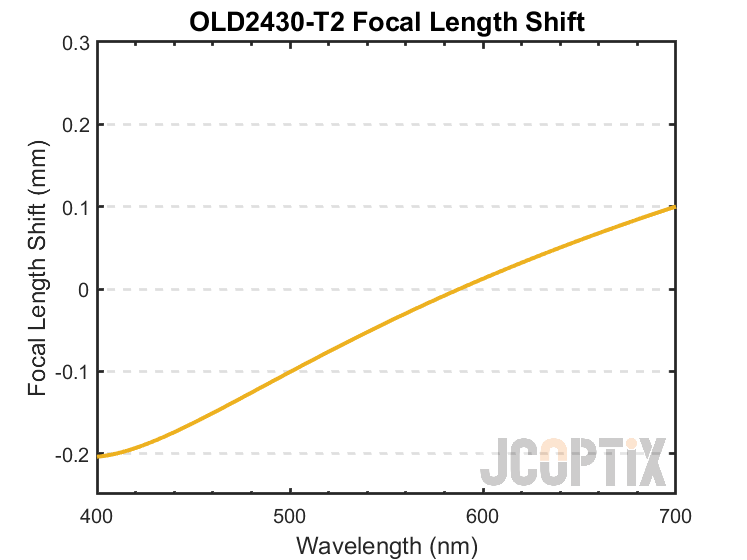

  • OLD2430-T2 Focal Length Shift

    OLD2430-T2 Focal Length Shift

  • OLD2430-T2 Theoretical Transmission

    OLD2430-T2 Theoretical Transmission

  • OLD2432-T2 Focal Length Shift

    OLD2432-T2 Focal Length Shift

  • OLD2432-T2 Theoretical Transmission

    OLD2432-T2 Theoretical Transmission

  • OLD2434-T2 Focal Length Shift

    OLD2434-T2 Focal Length Shift

  • OLD2434-T2 Theoretical Transmission

    OLD2434-T2 Theoretical Transmission

  • OLD2435-T2 Focal Length Shift

    OLD2435-T2 Focal Length Shift

  • OLD2435-T2 Theoretical Transmission

    OLD2435-T2 Theoretical Transmission

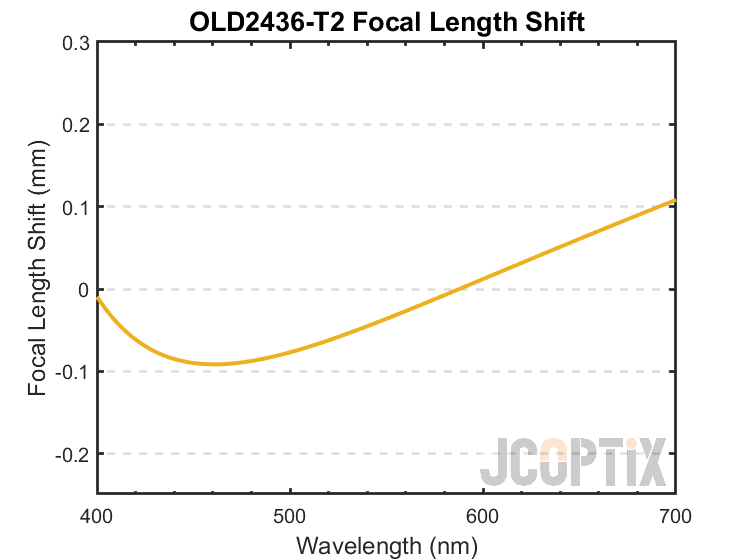

  • OLD2436-T2 Focal Length Shift

    OLD2436-T2 Focal Length Shift

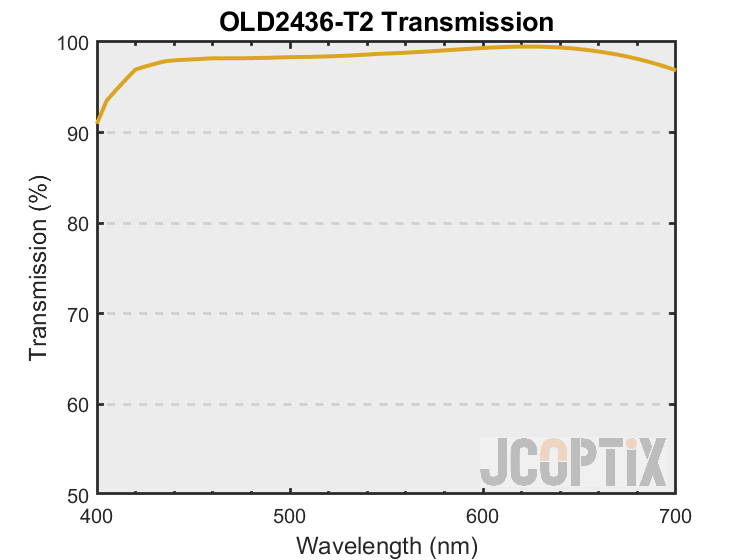

  • OLD2436-T2 Theoretical Transmission

    OLD2436-T2 Theoretical Transmission

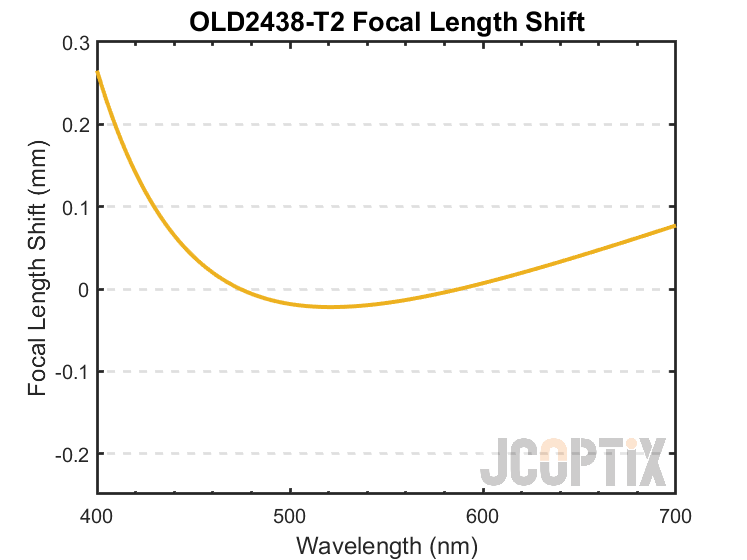

  • OLD2438-T2 Focal Length Shift

    OLD2438-T2 Focal Length Shift

  • OLD2438-T2 Theoretical Transmission

    OLD2438-T2 Theoretical Transmission

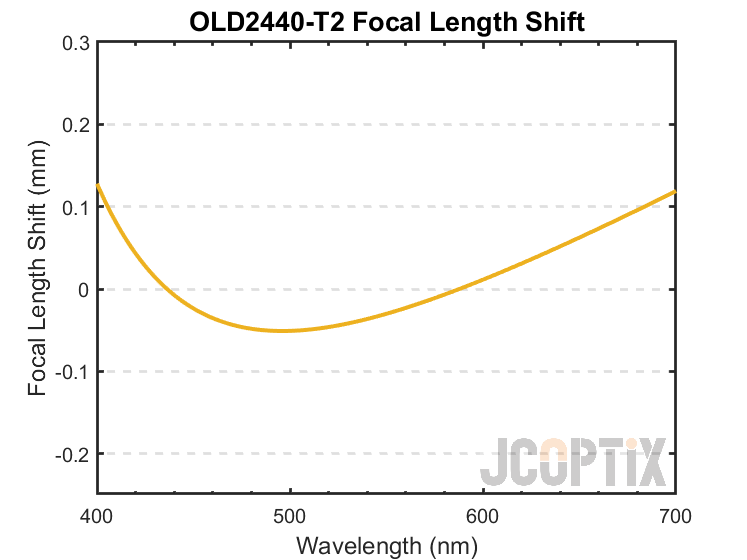

  • OLD2440-T2 Focal Length Shift

    OLD2440-T2 Focal Length Shift

  • OLD2440-T2 Theoretical Transmission

    OLD2440-T2 Theoretical Transmission

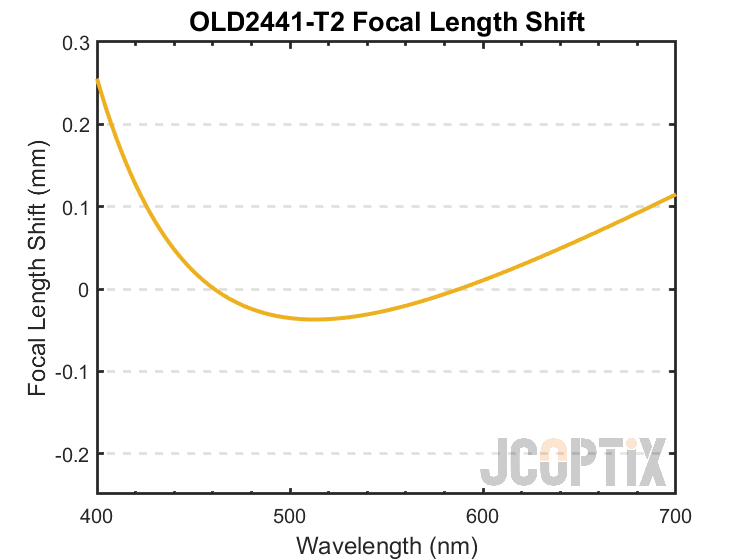

  • OLD2441-T2 Focal Length Shift

    OLD2441-T2 Focal Length Shift

  • OLD2441-T2 Theoretical Transmission

    OLD2441-T2 Theoretical Transmission

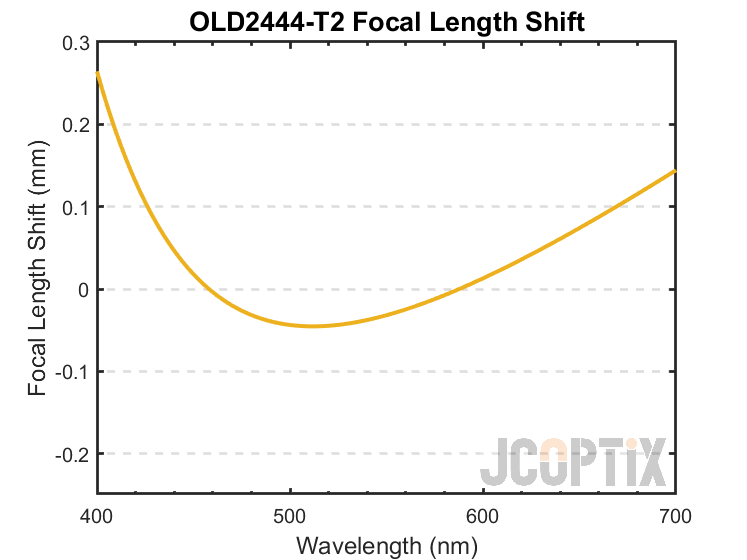

  • OLD2444-T2 Focal Length Shift

    OLD2444-T2 Focal Length Shift

  • OLD2444-T2 Theoretical Transmission

    OLD2444-T2 Theoretical Transmission

  • OLD2448-T2 Focal Length Shift

    OLD2448-T2 Focal Length Shift

  • OLD2448-T2 Theoretical Transmission

    OLD2448-T2 Theoretical Transmission

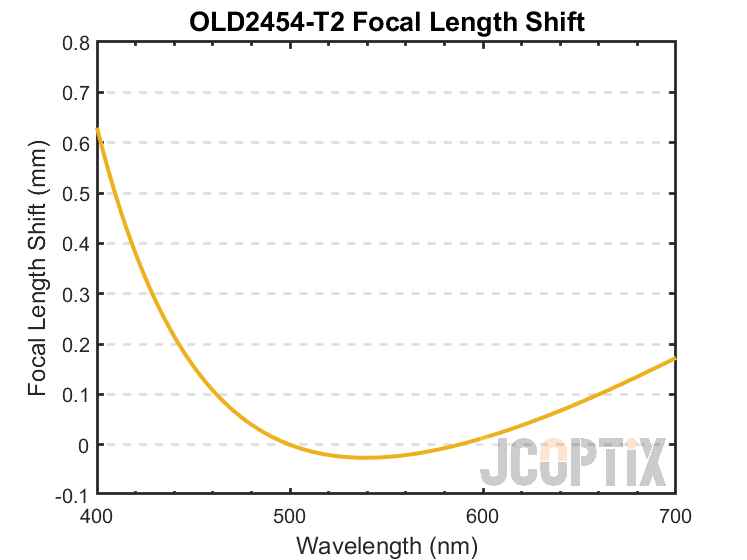

  • OLD2454-T2 Focal Length Shift

    OLD2454-T2 Focal Length Shift

  • OLD2454-T2 Theoretical Transmission

    OLD2454-T2 Theoretical Transmission

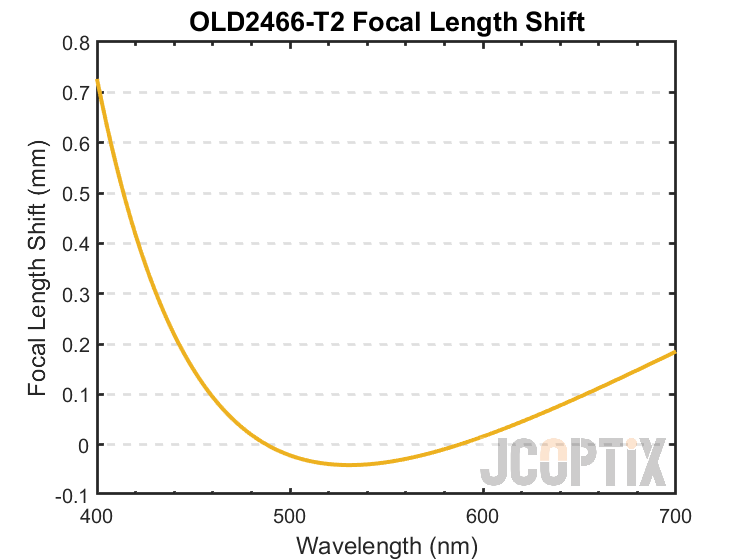

  • OLD2466-T2 Focal Length Shift

    OLD2466-T2 Focal Length Shift

  • OLD2466-T2 Theoretical Transmission

    OLD2466-T2 Theoretical Transmission

  • OLD2468-T2 Focal Length Shift

    OLD2468-T2 Focal Length Shift

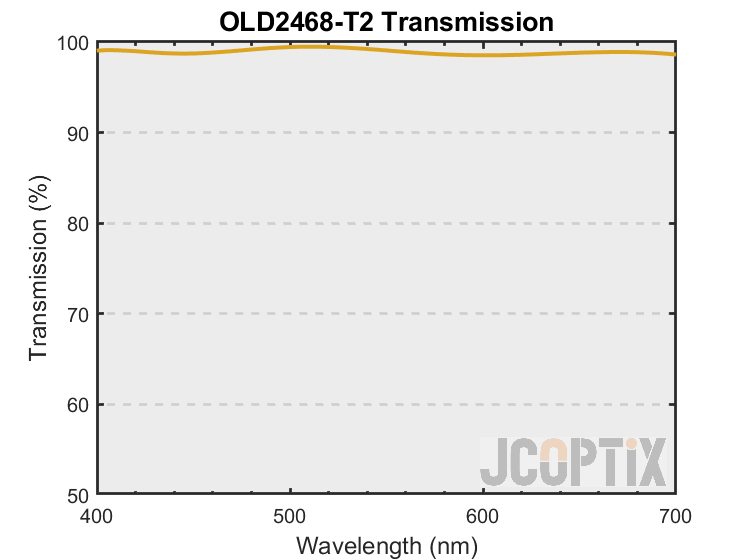

  • OLD2468-T2 Theoretical Transmission

    OLD2468-T2 Theoretical Transmission

  • OLD2470-T2 Focal Length Shift

    OLD2470-T2 Focal Length Shift

  • OLD2470-T2 Theoretical Transmission

    OLD2470-T2 Theoretical Transmission

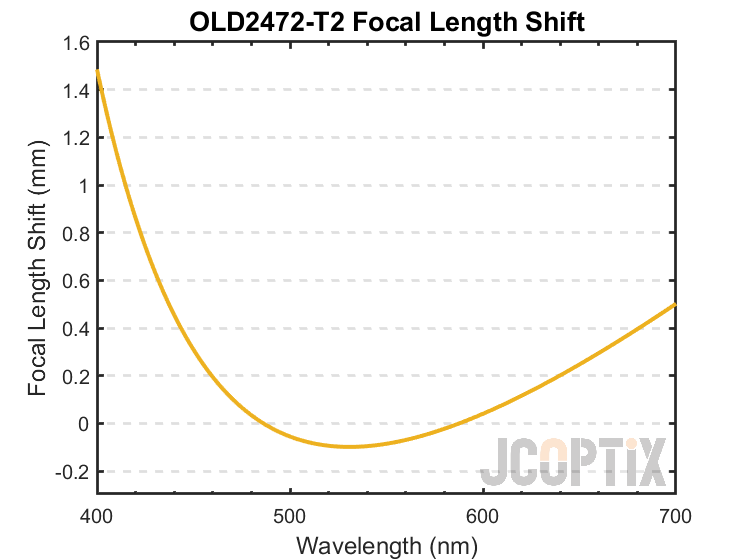

  • OLD2472-T2 Focal Length Shift

    OLD2472-T2 Focal Length Shift

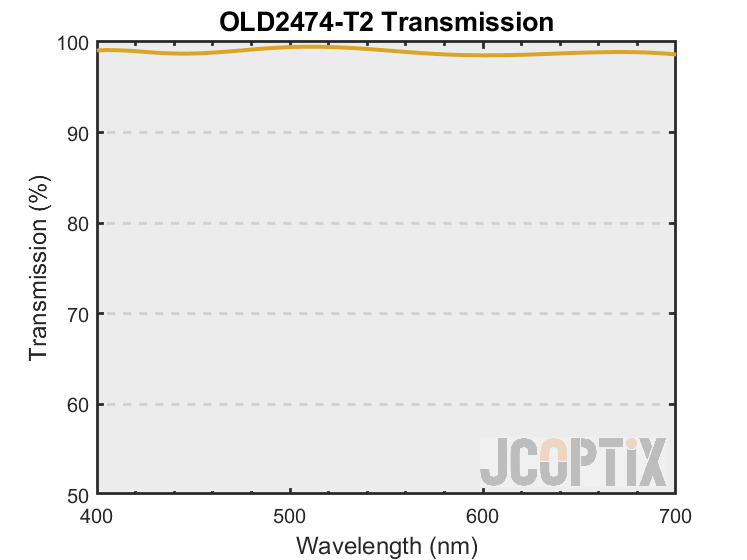

  • OLD2474-T2 Theoretical Transmission

    OLD2474-T2 Theoretical Transmission

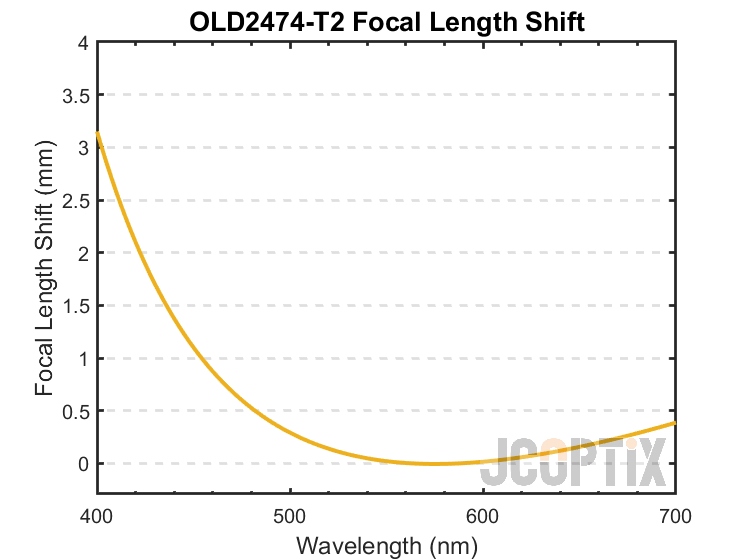

  • OLD2474-T2 Focal Length Shift

    OLD2474-T2 Focal Length Shift

  • OLD2472-T2 Theoretical Transmission

    OLD2472-T2 Theoretical Transmission

  • OLD3240-T2 Focal Length Shift

    OLD3240-T2 Focal Length Shift

  • OLD3240-T2 Theoretical Transmission

    OLD3240-T2 Theoretical Transmission

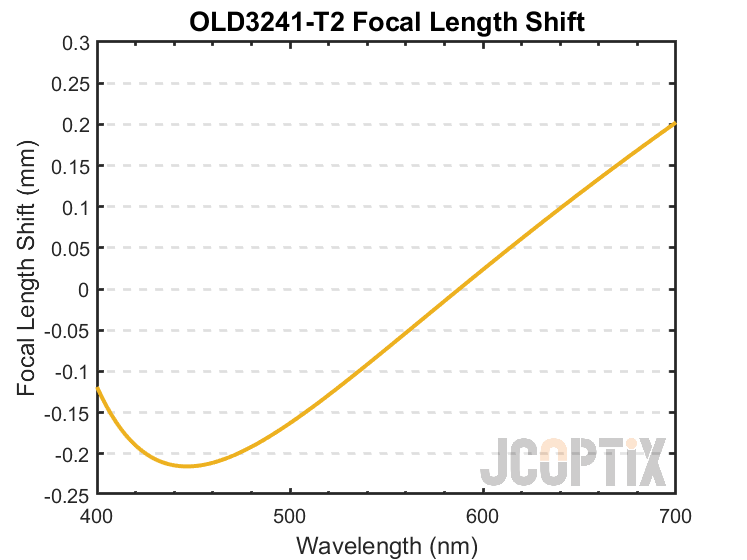

  • OLD3241-T2 Focal Length Shift

    OLD3241-T2 Focal Length Shift

  • OLD3241-T2 Theoretical Transmission

    OLD3241-T2 Theoretical Transmission

  • OLD3244-T2 Focal Length Shift

    OLD3244-T2 Focal Length Shift

  • OLD3244-T2 Theoretical Transmission

    OLD3244-T2 Theoretical Transmission

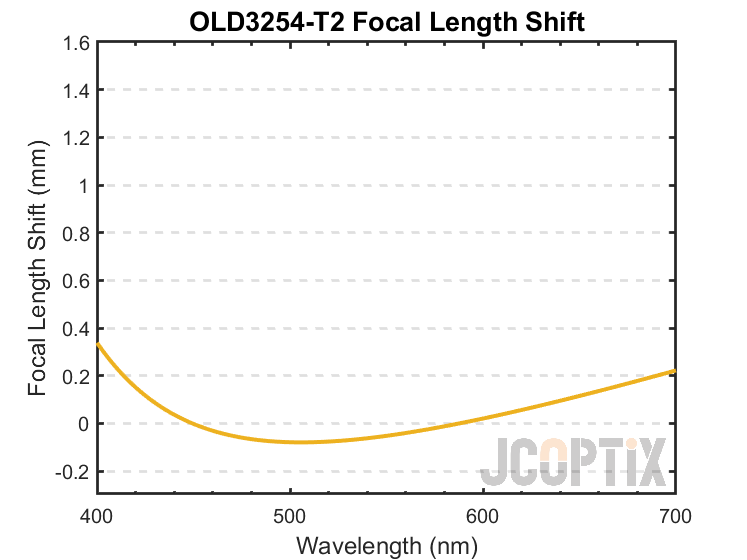

  • OLD3254-T2 Focal Length Shift

    OLD3254-T2 Focal Length Shift

  • OLD3254-T2 Theoretical Transmission

    OLD3254-T2 Theoretical Transmission

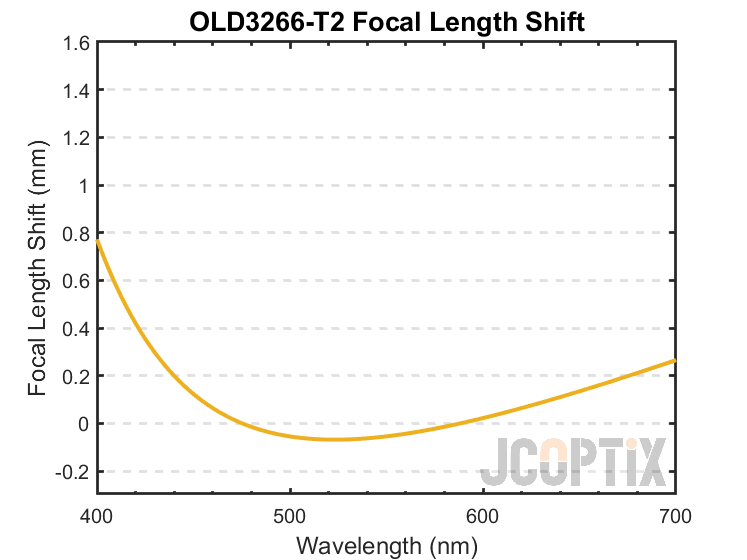

  • OLD3266-T2 Focal Length Shift

    OLD3266-T2 Focal Length Shift

  • OLD3266-T2 Theoretical Transmission

    OLD3266-T2 Theoretical Transmission

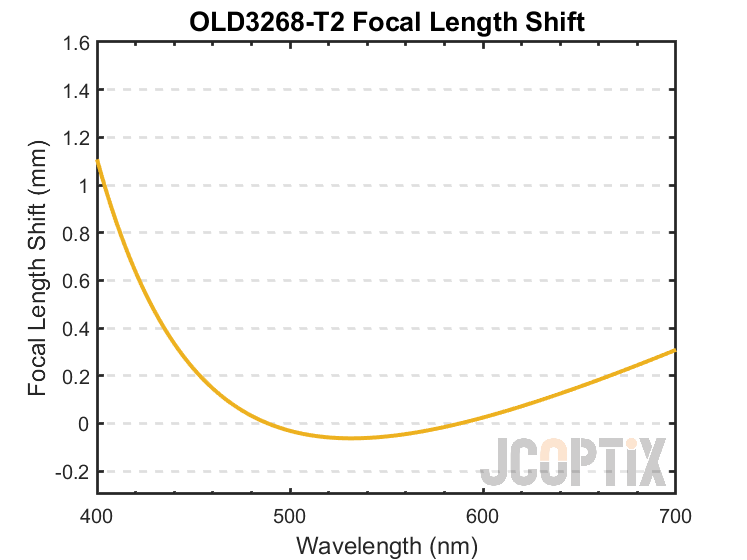

  • OLD3268-T2 Focal Length Shift

    OLD3268-T2 Focal Length Shift

  • OLD3268-T2 Theoretical Transmission

    OLD3268-T2 Theoretical Transmission

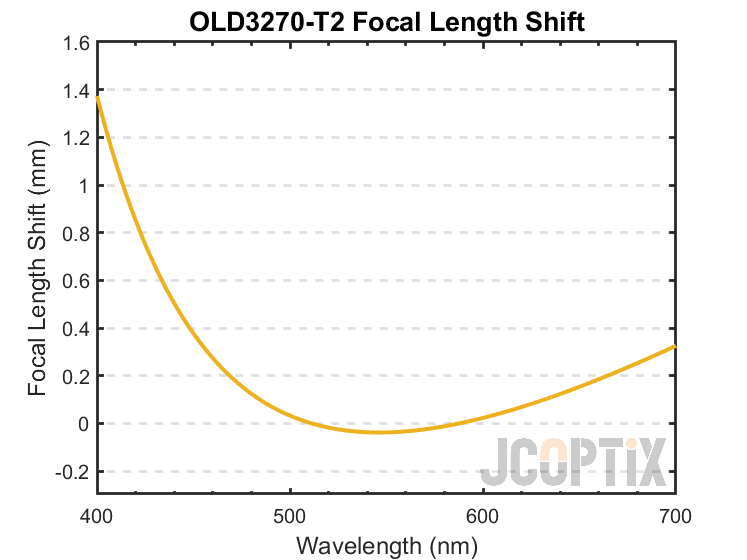

  • OLD3270-T2 Focal Length Shift

    OLD3270-T2 Focal Length Shift

  • OLD3270-T2 Theoretical Transmission

    OLD3270-T2 Theoretical Transmission

  • OLD3272-T2 Focal Length Shift

    OLD3272-T2 Focal Length Shift

  • OLD3272-T2 Theoretical Transmission

    OLD3272-T2 Theoretical Transmission

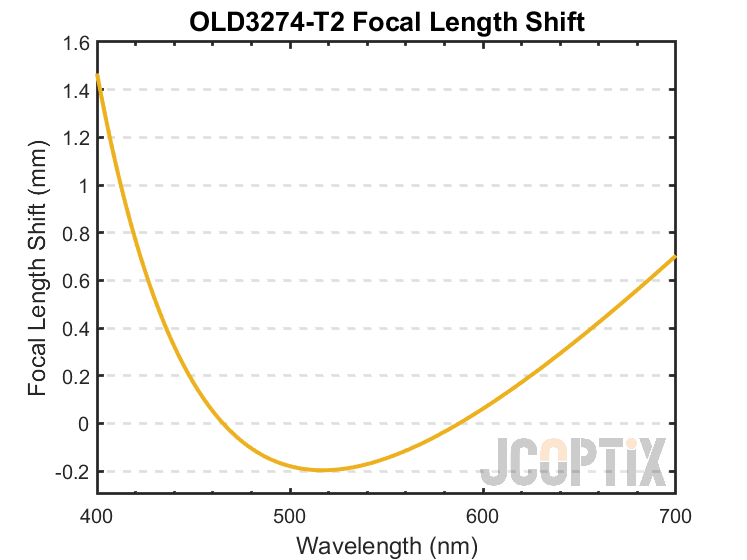

  • OLD3274-T2 Focal Length Shift

    OLD3274-T2 Focal Length Shift

  • OLD3274-T2 Theoretical Transmission

    OLD3274-T2 Theoretical Transmission

  • OLD3278-T2 Focal Length Shift

    OLD3278-T2 Focal Length Shift

  • OLD3278-T2 Theoretical Transmission

    OLD3278-T2 Theoretical Transmission

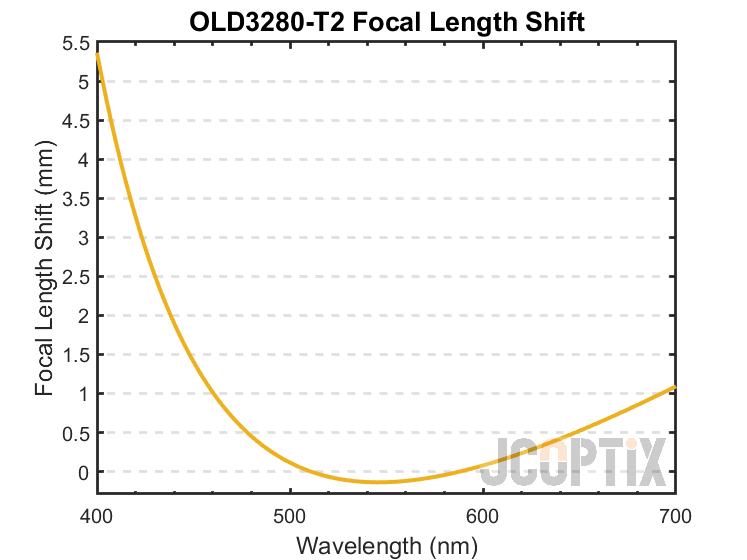

  • OLD3280-T2 Focal Length Shift

    OLD3280-T2 Focal Length Shift

  • OLD3280-T2 Theoretical Transmission

    OLD3280-T2 Theoretical Transmission

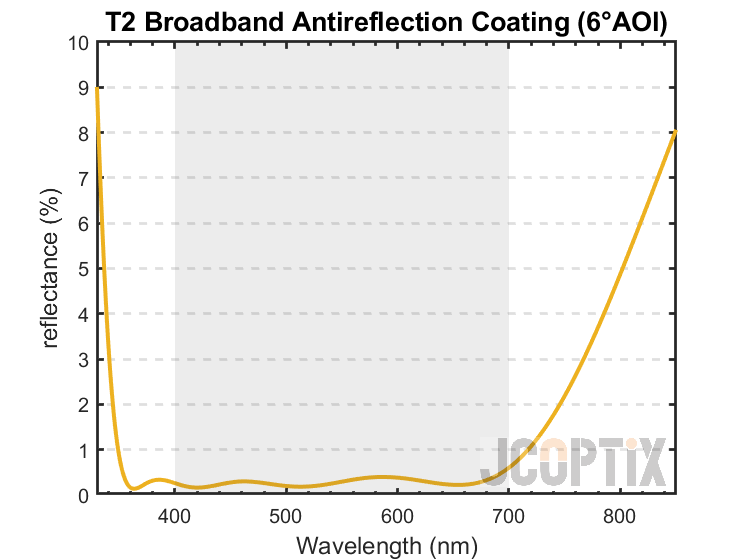

  • T2 Broadband AR Coating

    T2 Broadband AR Coating

消色差膠合透鏡，工作波長：400-700 nm，安裝于標準透鏡套筒

產品型號3D預覽光學元件材質直徑焦距分享對比單價發貨日期購物車
N-BAF10/N-SF6HT12.7 mm19.0 mm
￥488.00 當天
N-BAF10/N-SF1012.7 mm25.0 mm
￥488.00 當天
N-BK7/SF212.7 mm30.0 mm
￥488.00 當天
N-BK7/SF212.7 mm50.0 mm
￥488.00 當天
N-BK7/SF212.7 mm75.0 mm
￥488.00 當天
N-BAF10/N-SF6HT25.4 mm30.0 mm
￥696.00 當天
N-BAF10/N-SF6HT25.4 mm35.2 mm
￥696.00 當天
N-BK7/SF525.4 mm40.1 mm
￥696.00 當天
N-BAF10/N-SF6HT25.4 mm45.0 mm
￥696.00 當天
N-BAF10/N-SF1025.4 mm50.2 mm
￥696.00 當天
E-BAF11/FD1025.4 mm60.1 mm
￥696.00 當天
N-BK7/SF525.4 mm74.9 mm
￥696.00 當天
N-BK7/SF525.4 mm100.1 mm
￥696.00 當天
N-BK7/N-SF525.4 mm125.0 mm
￥696.00 當天
N-BK7/SF525.4 mm150.0 mm
￥696.00 當天
N-SSK5/LAFN725.4 mm200.2 mm
￥696.00 當天
N-BK7/SF225.4 mm250.0 mm
￥696.00 當天
N-BK7/SF225.4 mm300.2 mm
￥696.00 當天
N-BK7/SF225.4 mm399.3 mm
￥696.00 當天
N-BK7/SF225.4 mm502.5 mm
￥696.00 當天
N-BK7/N-SF525.4 mm80.0 mm
￥696.00 當天
E-BAF11/N-SF1150.8 mm74.9 mm
￥966.00 當天
N-BAF10/N-SF6HT50.8 mm80.0 mm
￥966.00 當天
N-BAF10/N-SF1050.8 mm100.0 mm
￥966.00 當天
N-BK7/SF550.8 mm150.0 mm
￥966.00 當天
N-BK7/N-SF250.8 mm200.0 mm
￥966.00 當天
N-BK7/N-SF250.8 mm250.0 mm
￥966.00 當天
N-BK7/SF250.8 mm300.0 mm
￥966.00 當天
N-BK7/N-SF250.8 mm400.0 mm
￥966.00 當天
N-BK7/N-SF250.8 mm500.0 mm
￥966.00 當天
N-BK7/N-SF250.8 mm750.0 mm
￥966.00 當天
N-BK7/N-SF250.8 mm1000.0 mm
￥966.00 當天

消色差膠合透鏡，工作波長：400-700 nm

產品型號3D預覽光學元件材質直徑焦距分享對比單價發貨日期購物車
N-BAF10/N-SF6HT12.7 mm19.0 mm
￥398.00 當天
N-BAF10/N-SF1012.7 mm25.0 mm
￥398.00 當天
N-BK7/SF212.7 mm30.0 mm
￥398.00 當天
N-BK7/SF212.7 mm50.0 mm
￥398.00 當天
N-BK7/SF212.7 mm75.0 mm
￥398.00 當天
N-BAF10/N-SF6HT25.4 mm30.0 mm
￥596.00 當天
N-BAF10/N-SF6HT25.4 mm35.2 mm
￥596.00 當天
N-BK7/SF525.4 mm40.1 mm
￥596.00 當天
N-BAF10/N-SF6HT25.4 mm45.0 mm
￥596.00 當天
N-BAF10/N-SF1025.4 mm50.2 mm
￥596.00 當天
E-BAF11/FD1025.4 mm60.1 mm
￥596.00 當天
N-BK7/SF525.4 mm74.9 mm
￥596.00 當天
N-BK7/N-SF525.4 mm80.0 mm
￥596.00 當天
N-BK7/SF525.4 mm100.1 mm
￥596.00 當天
N-BK7/N-SF525.4 mm125.0 mm
￥596.00 當天
N-BK7/SF525.4 mm150.0 mm
￥596.00 當天
N-SSK5/LAFN725.4 mm200.2 mm
￥596.00 當天
N-BK7/SF225.4 mm250.0 mm
￥596.00 當天
N-BK7/SF225.4 mm300.2 mm
￥596.00 當天
N-BK7/SF225.4 mm399.3 mm
￥596.00 當天
N-BK7/SF225.4 mm502.5 mm
￥596.00 當天
E-BAF11/N-SF1150.8 mm74.9 mm
￥846.00 當天
N-BAF10/N-SF6HT50.8 mm80.0 mm
￥846.00 當天
N-BAF10/N-SF1050.8 mm100.0 mm
￥846.00 當天
N-BK7/SF550.8 mm150.0 mm
￥846.00 當天
N-BK7/N-SF250.8 mm200.0 mm
￥846.00 當天
N-BK7/N-SF250.8 mm250.0 mm
￥846.00 當天
N-BK7/SF250.8 mm300.0 mm
￥846.00 當天
N-BK7/N-SF250.8 mm400.0 mm
￥846.00 當天
N-BK7/N-SF250.8 mm500.0 mm
￥846.00 當天
N-BK7/N-SF250.8 mm750.0 mm
￥846.00 當天
N-BK7/N-SF250.8 mm1000.0 mm
￥846.00 當天

消色差膠合透鏡套裝，工作波長：400-700 nm

產品型號3D預覽工作波長焦距直徑分享對比單價發貨日期購物車
400-700 nm30.0 mm, 35 mm, 40 mm, 45 mm,
50 mm, 60 mm, 75 mm, 80 mm,
100 mm, 125 mm, 150 mm, 200 mm,
250 mm, 300 mm, 400 mm, 503 mm		25.4 mm
￥9,980.00 2周
